Load AlphaFold Structure

Load a protein from the AlphaFold Protein Structure Database of predicted protein structures.

Menu: File → Import → AlphaFold

Guided tour: Launch in MolModa

This plugin retrieves AlphaFold-predicted protein models using a UniProt accession number.

Where to find it

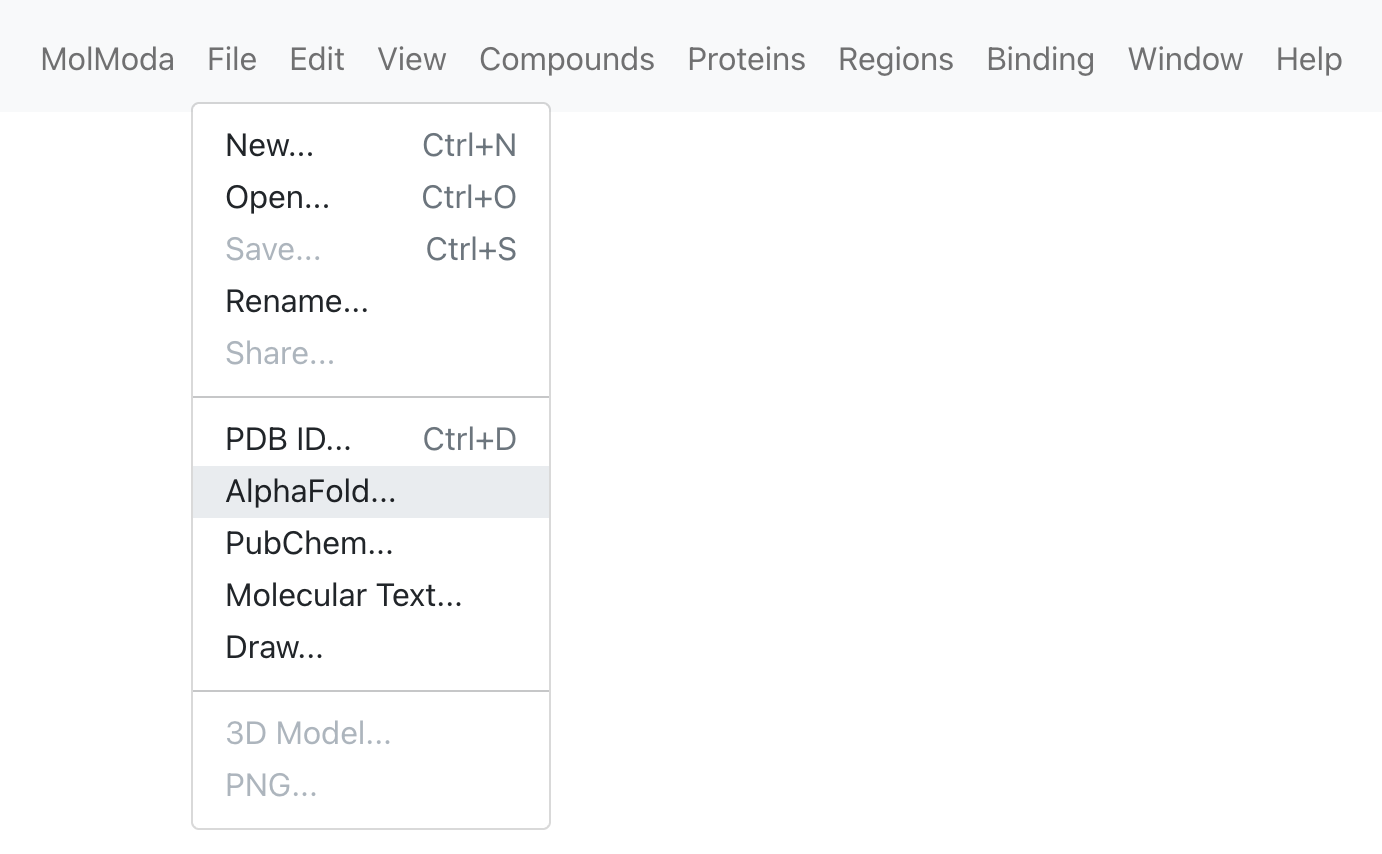

Menu location for Load AlphaFold Structure

Dialog

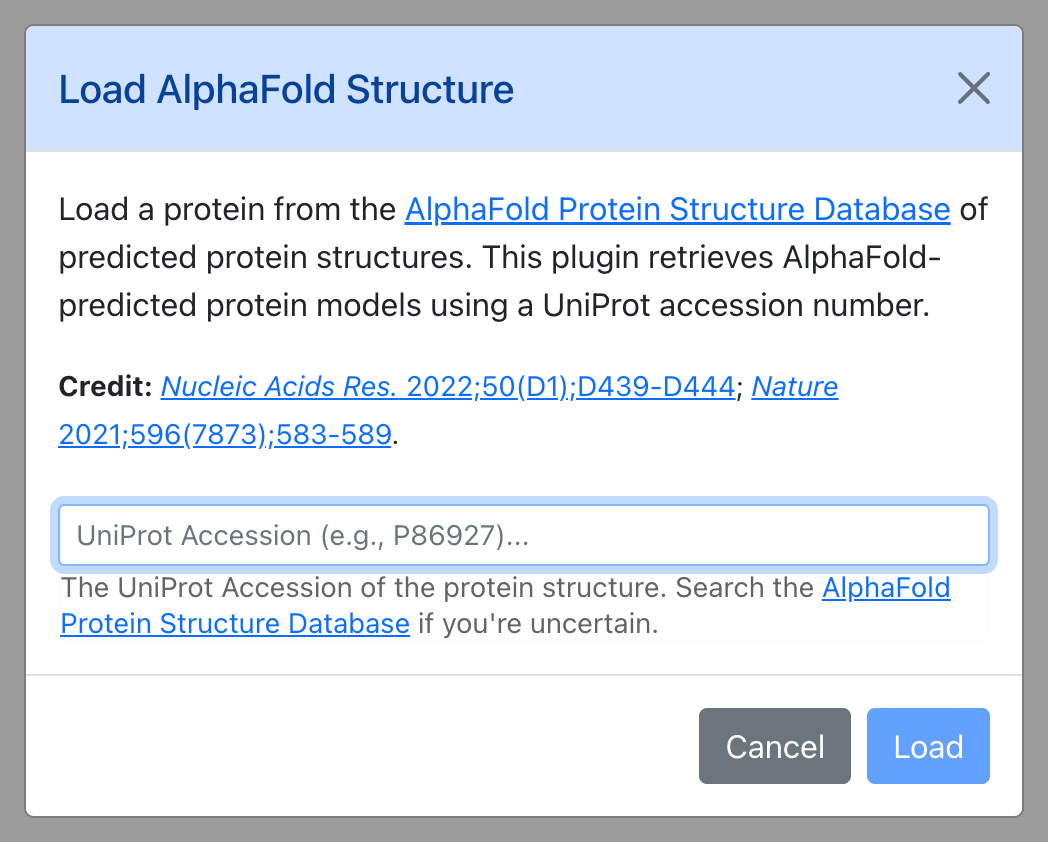

Dialog for Load AlphaFold Structure

Parameters

Parameter Default Description
UniProt Accession (e.g., P86927)… — The UniProt Accession of the protein structure. Search the AlphaFold Protein Structure Database if you're uncertain.
