Region From Molecule(s)
Create a region that surrounds the specified molecules.

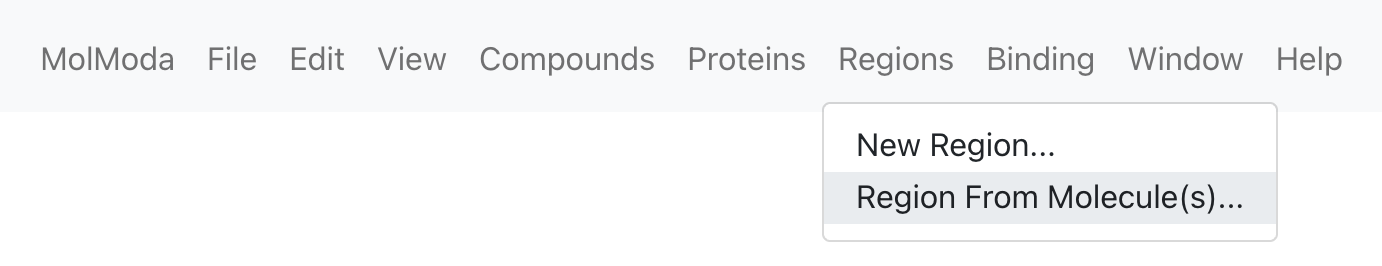

Menu: Regions → Region From Molecule(s)
Guided tour: Launch in MolModa
This plugin calculates a bounding box or sphere around all atoms in the chosen molecules, with configurable padding.
Where to find it

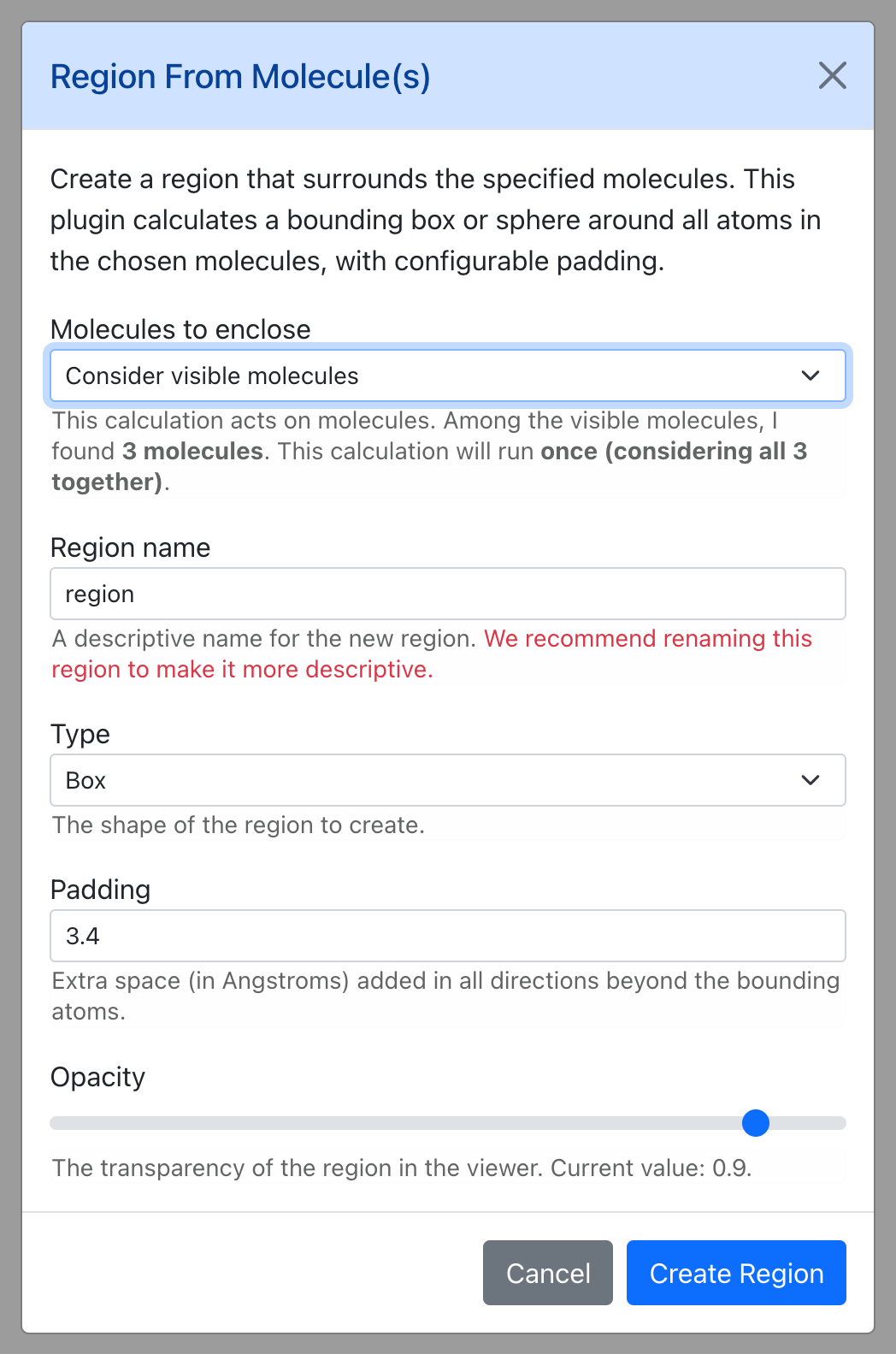

Dialog
Parameters
| Parameter | Default | Description |
|---|---|---|
| Molecules to enclose | — | — |
| Region name | region |
A descriptive name for the new region. |
| Type | box |
The shape of the region to create. |
| Padding | 3.4 |
Extra space (in Angstroms) added in all directions beyond the bounding atoms. |
| Opacity | 0.9 |
The transparency of the region in the viewer. |
